Key Points

  • Excellent flatness and rigidity.
  • Large panel sizes possible (1000mm x 8000mm max.) depending on installation system.
  • PE and FR* core (B s1 d0 according to EN13501) available.
  • Can be curved.
  • Easy and fast installation.
  • Various fixing options and sub structure types available.

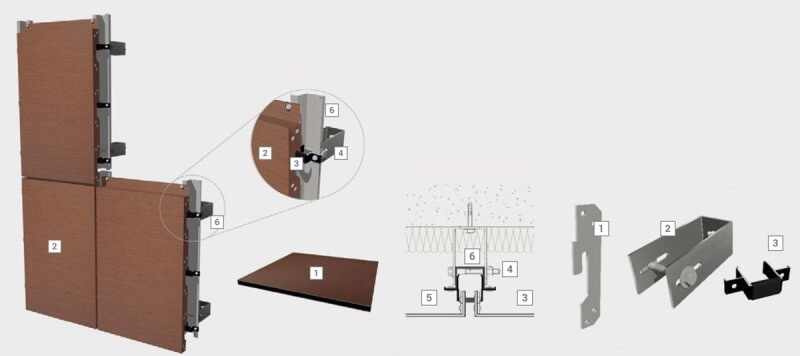

Hung Cassettes

  1. elZinc® composite material
  2. elZinc® composite panel
  3. Flange reinforcement
  4. Adjustable wall bracket
  5. Panel support with anti-vibration sleeve
  6. Top hat profile

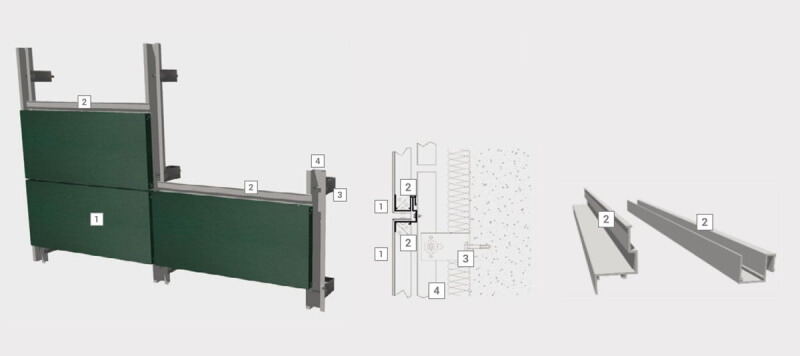

Tongue and groove system

Cassette system with simplified panel preparation. Best in horizontal layouts – vertical panel edges are un-supported so panel height is limited – consult elZinc® for maximum panel height.

  1. elZinc® composite panel
  2. Extruded aluminium profiles
  3. Adjustable wall bracket
  4. Top hat profile

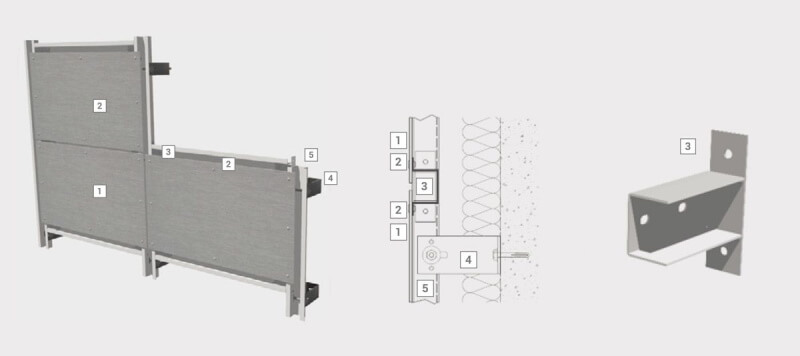

Rivetted system

Simple and economical. Horizontal and vertical layouts possible.

  1. elZinc® composite material
  2. Rivet fixing around elZinc composite
  3. Transome fixing bracket
  4. Adjustable wall bracket
  5. Top hat profile
