Main Features

Whether for new-build or refurbishment projects, prefabricated elZinc® tiles are a great solution for wall cladding and for weathering roofs pitched over either 25º or 45º (depending on the type of tile used).

Our five types of shingles, made of elZinc® zinc-titanium (EN988 standard), lend themselves to all architectural styles, harmonising perfectly with the surrounding materials.

elZinc’s® range of tiles are available in every elZinc® surface finish.

In addition to their ecological and aesthetic qualities, elZinc® tiles are:

  • Easy to install.
  • Suitable for most projects.
  • Highly corrosion resistant.
  • Virtually maintenance free.

Our five designs

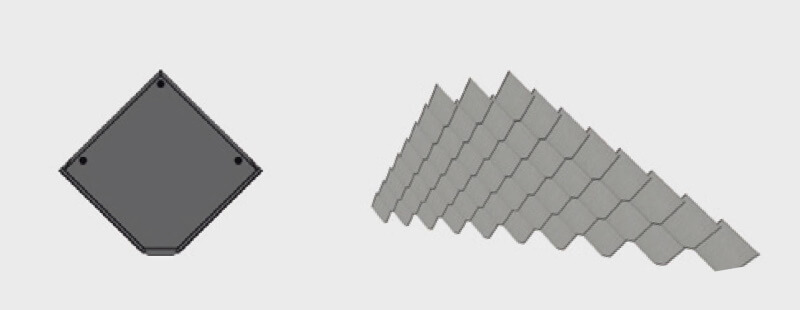

Square Tiles

elZinc’s® square tile with polystyrene reinforcement is notable for its ease of installation. Its clean design gives the cladding an elegantly neat appearance.

  • Elements number/m2: 9.
  • Approx. weight/m2 (in 0,7 mm): 7,3 kg
  • Dimensions: 400 x 400mm (parallel edges) / 512mm x 555mm (height x width).
  • Piece n/box: 24

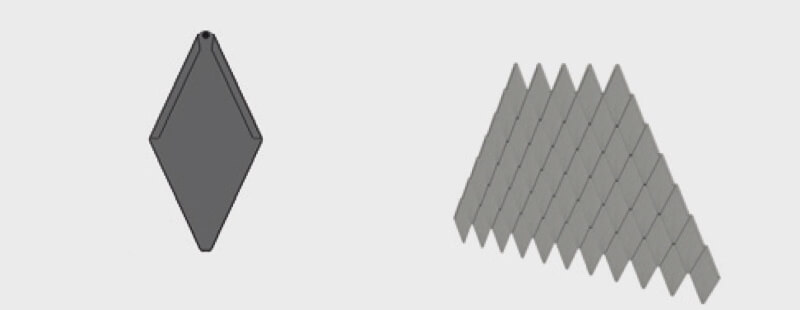

Rhomboid tile

The elZinc® rhomboid tile gives a stylised look to roofs and façades. The sleek interlocking tile highlights verticality, and is suited to both modern and traditional architecture.

  • Elements number/m2: 14.
  • Approx. weight/m2 (in 0,7 mm): 7,8 kg
  • Dimensions: 260 x 260mm (parallel edges) / 560mm x 280mm
  • Pieces number/box: 35

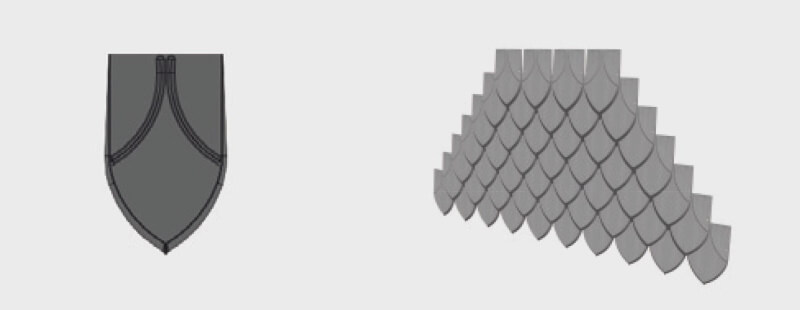

Pointed fish scale tile

This elZinc tile brings to mind images of baroque architecture. It provides, in its simplicity, a discreet, traditional feel to the building.

  • Elements number/m2: 72
  • Approx. weight/m2 (in 0,7 mm): 10,9 kg
  • Dimensions: 240mm x 142mm
  • Pieces number/box: 144

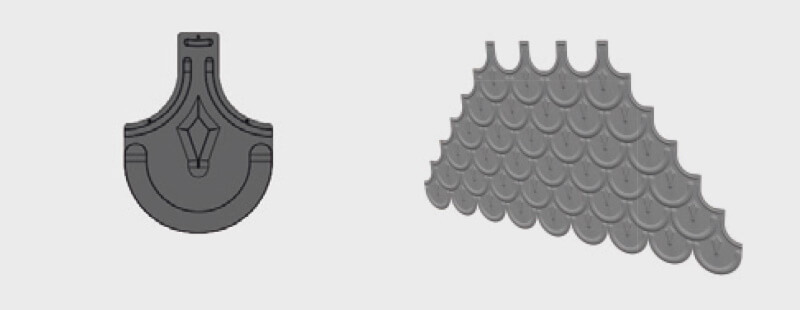

Rounded pointed fish scale tile

A new twist on a classic model. elZinc’s® rounded fish scale tile is inspired by a shape commonly used in traditional European architecture.

  • Elements number/m2: 41
  • Approx. weight/m2 (in 0,7 mm): 7,4 kg
  • Dimensions: 280mm x 200mm
  • Pieces number/box: 104

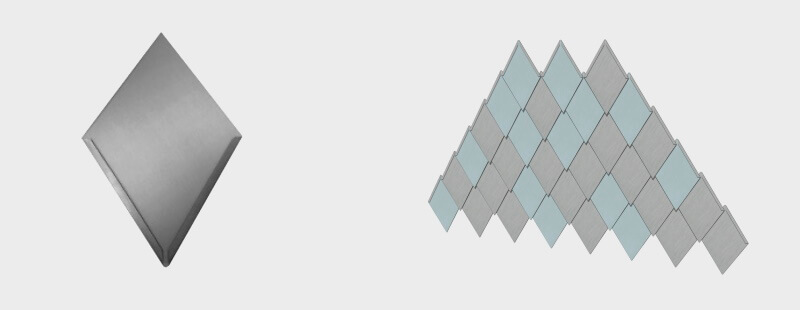

Diamond tile

A larger format tile suitable for a wide range of applications.

  • Elements number/m2:9,12
  • Approx. weight/m2 (in 0,7 mm): 7,2 kg
  • Dimensions: 611x415mm / 340mm perpendicular to hemmed edges
  • Pieces number/box: 20
